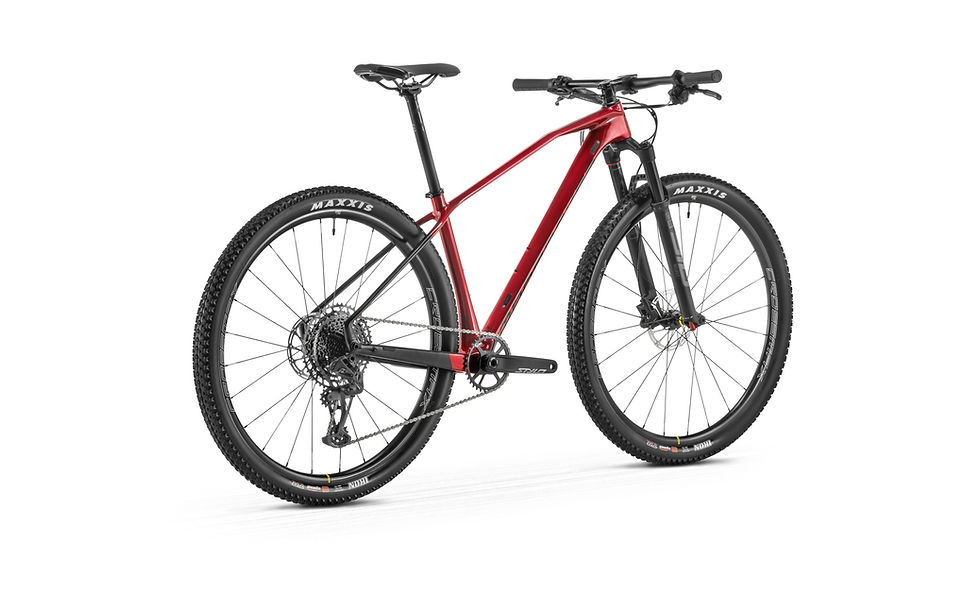

CHRONO CARBON R 2022

Frame
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design

Sizes
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork
Rockshox SID SL Base RL 29, 100mm, Charger, Debonair, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload

Headset
ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Fork remote
RockShox OneLoc

Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
Handlebar
ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips
ONOFF Diamond, 1lock-on, 135mm
Seatpost
ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

Saddle
Mondraker XC Series, steel rail
Front brake
SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake
SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
SRAM Level, tooled reach adjust, lever pivot bushings

Rims
Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Spokes
Mavic straightpull duble butted, contactless lacing

Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts

Front tire
Maxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
Rear tire
Maxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead

Crankset
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Rings
34T, steel, X-Sync 2

Bottom bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM SX Eagle, 12s, Powerlock

Rear derrailleur
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1

Casette
SRAM XG-1230, 11-50T, 12s
Derailleur hanger
Mondraker M068

Weight
10.3 kg
