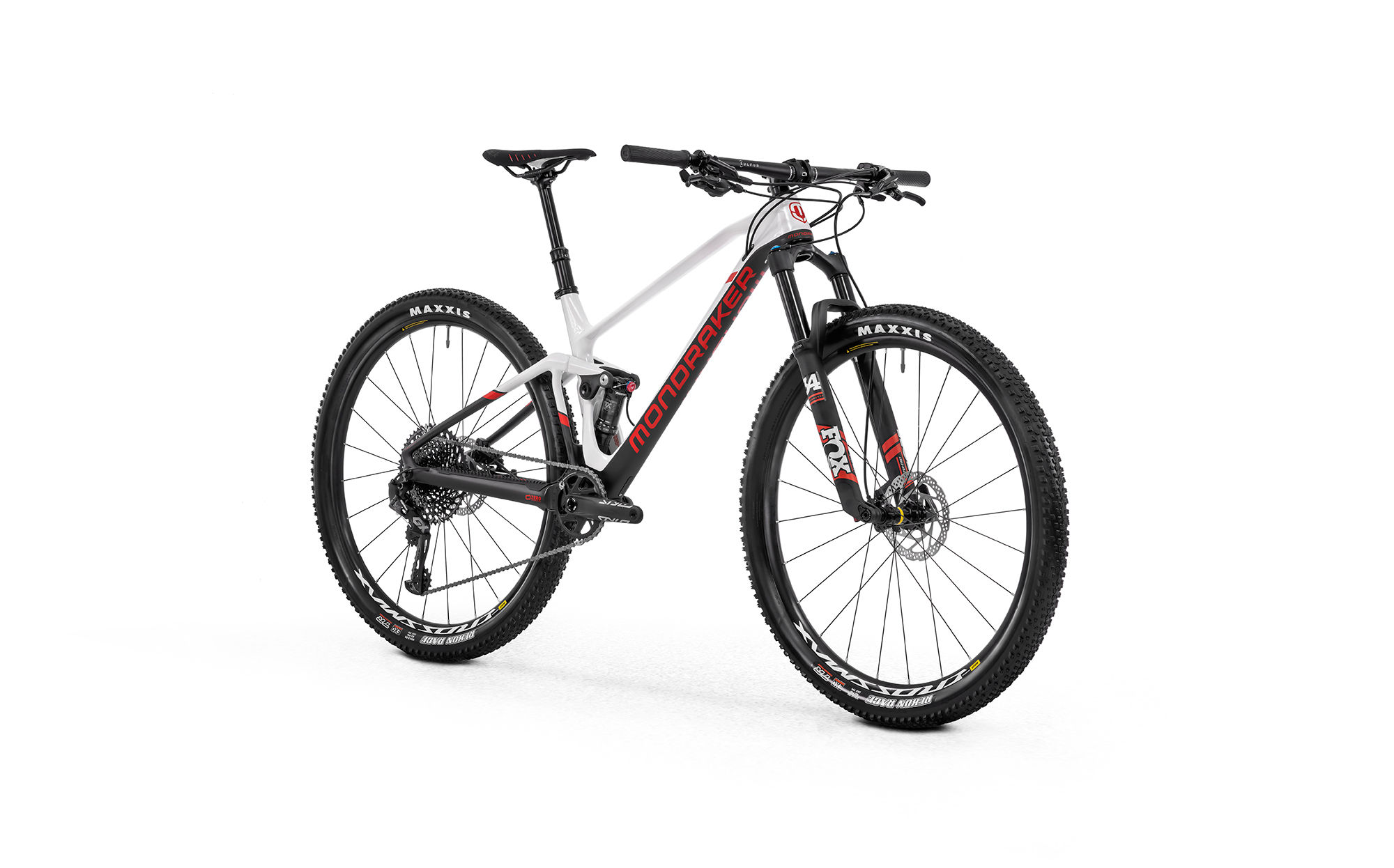

F-PODIUM CARBON DC R 2020



F-Podium Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Fox Float DPS SV EVOL Performance Elite, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock setting

Firm compression, light rebound, air volume spacer 0.2

Fork

Fox 34 29 Float GRIP EVOL Step Cast Performance, 120mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°

Stem

Mondraker Chrono Carbon, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 50mm, size L/XL: 60mm

Handlebar

OnOff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm sizes: S/M L/XL

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L/XL size: 425x125mm

Saddle

Fizik Antares R7

Front brake

Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads

Rear brake

Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads

Brake lever

Shimano MT501, servo wave, alloy lever

Rim

Mavic Crossmax 29, 25mm internal width, asymmetric, tubeless ready, 24 spokes

Spokes

Mavic Steel



Front hub

Mavic 15x110mm, sealed bearings, IS 6 bolts

Rear hub

Mavic 12x148mm, sealed bearings, ID360, IS 6 bolts

Front tyre

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Rear tyre

Maxxis Rekon Race 29x2.25, EXO protection, tubeless ready, 120TPI, folding bead

Crank

Truvativ Stylo 7K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

Rings

34T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB PF30, sealed bearings, 73mm

Pedals

/

Chain

Sram NX Eagle, 12s

Front  derailleur

/

Rear derailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1

Lever

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

Sprocket

SRAM XG-1275, 10-50T, 12s

Hanger

Mondraker M068

Others

/

Weight without pedals

11.9 kg
